Tycon Power Tp Dcdc 1224G 4P 36Vdc In 24Vdc 4 Pair Poe Out Suit Af5Xhd

TYCON POWER TP-DCDC-1224G-4P 9-36VDC IN 24VDC 4 PAIR POE OUT SUIT AF-5XHD

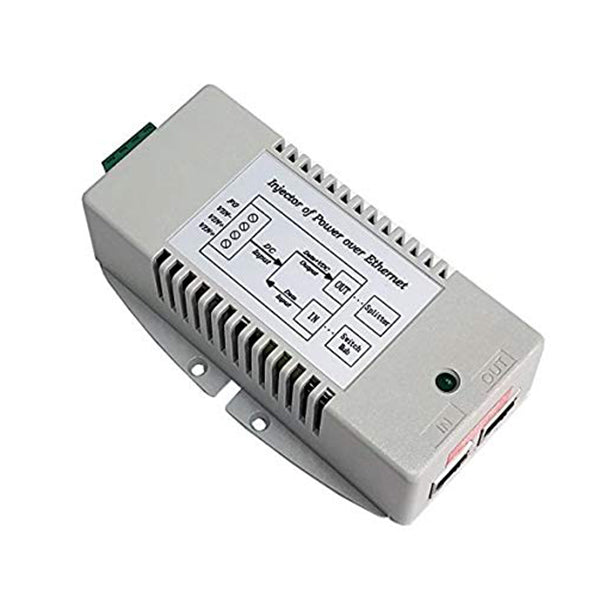

Tycon Power TP-DCDC-1224G-4P is a Gigabit DC to DC converter, with an output power of up to 24W. It features 4 pair Passive Power over Ethernet from a 12-24V source. TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4-pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery or a system. It has an integrated 4 pair PoE injector to apply the power and data output to the CAT5 cable. It has two inputs for connecting 2 power sources, like a primary and backup source.

FEATURES

Input voltage 9-36VDC

24V Gigabit Passive 4 Pair PoE Output

Dual inputs for  connecting 2 power sources

Integrated 10/100/1000MB PoE Sources

High power up to 24W

Short circuit, Over Current and Reverse/Over Voltage Protect

High temperature operation to 70°C

Built-in low battery disconnect and Surge protection

Applications:

12/24V Battery systems, Vehicle applications

UBNT AirFiber X

Wireless Access Points and Client Devices

SPECIFICATIONS

DC input voltage: 9 - 36VDC, Input / Output is isolated

DC input connector: Removable screw type compression wire terminal (12 AWG Max)

DC output voltage: 24V (Passive) 4 pair power

Data In & Data / PoE output connector: RJ45 (shielded)

Output current (max): 1A

Output power (max): 24W

Low voltage disconnect / Reconnect: Disconnect at 8.9V, Reconnect at 9.02V

Efficiency (min): 80%

Line regulation: 1%

Load regulation: 5%

Ripple: 1%

Noise: 1%

LED operation: RED = Input Power On / Green = Output Connected

Surge protection (IEC 6100-4): 15kV (Air), 8kV (Contact), 20A (8/20us) Lightning

EMC standards: FCC Class B EN55022 Class B

Safety standards: UL1950, CSA 22.2 & TUV EN60950

Operating temperature: -40 to 80°C (-40 to 176°F)

Operating humidity: 5 to 90%

Storage temperature: -40 to 80°C (-40 to 176°F)

Dimensions: 125 x 75 x 38 mm (4.9 x 3 x 1.5")

Weight: 300 g (10.6 oz)

PACKAGE CONTENTS

1 x  Tycon Power Tp Dcdc 1224G 4P 36Vdc In 24Vdc 4 Pair Poe Out Suit Af5Xhd
