Datalogic Touch 65 Lite Includes Scanner Holder And 90A052044 Cable
Description

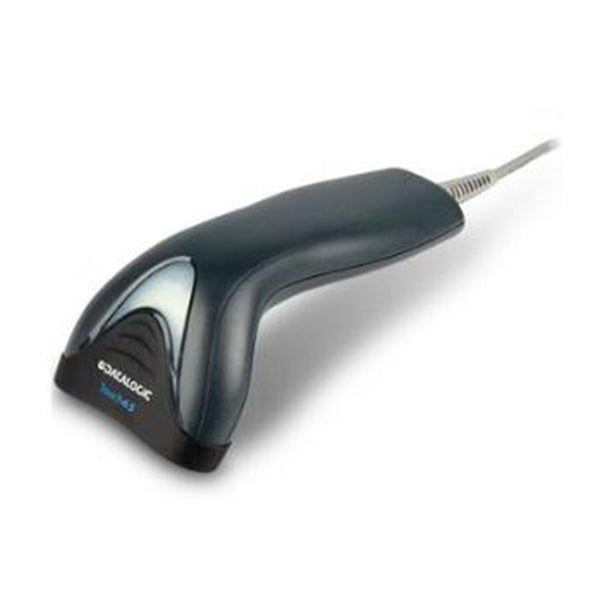

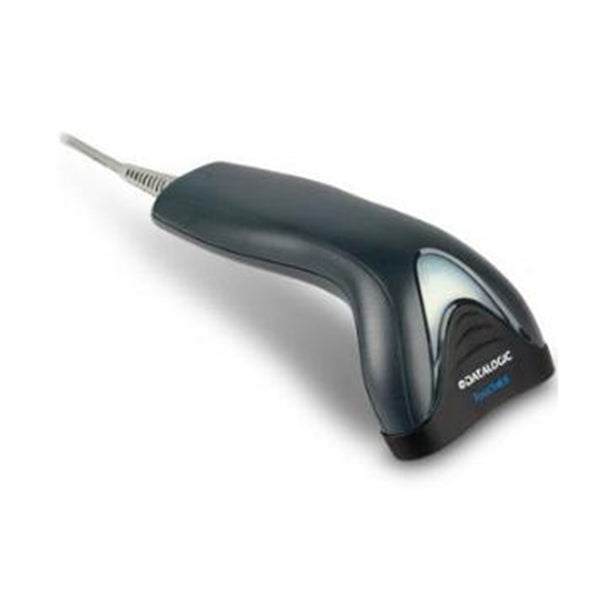

DATALOGIC TOUCH 65 LITE INCLUDES SCANNER HOLDER AND 90A052044 CABLE
The TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
SPECIFICATIONS
Interfaces/Ports
Host Interface: USB
Miscellaneous
Additional Information: USB Cable separate
Application/Usage: Library
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Certification:
EU RoHS
China RoHS
Technical Information
Barcode Symbology Supported:
1D / Linear Codes:
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Stacked Codes:
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
Connectivity Technology: Cable
Scanning Distance: 150 mm
Maximum Scan Resolution: 0.10 mm
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Depth of Field
0" - 3.2"@7.5mil - Code 39
0" - 4.7"@10mil - Code 39
0" - 6"@13mil - EAN13
Scan Pattern: Omni-directional
Image Sensor Type:
Linear
Imager
Cable Type Included: USB
Scanning Capability: 1D
Reading Angle (Skew): 70°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 20000 lux
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 0.19 mm
Maximum Element Resolution (Code 39): 0.25 mm
Physical Characteristics
Weight (Approximate): 130.4 g
Colour: Black
Form Factor: Handheld
Height: 160 mm
Width: 58.4 mm
Depth: 83.8 mm
Rugged: Yes
General Information
Product Type: Barcode Scanner Kit
Manufacturer Part Number: TD1120-BK-65K1
Manufacturer: Datalogic S.p.A
Product Model: 65 Lite
Product Name: General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit
Product Line: Touch
Product Series: TD1100
Brand Name: Datalogic
PACKAGE CONTENTS
1 x Contact Linear Imager Bar Code
1 x General Purpose Corded Handheld
1 x Holder
1 x Reader
1 x USB Cable
