55V Dc 30 Watt 10 Gigabit Wide Temperature Power Over Ethernet Supply

55V DC 30 WATT 10 GIGABIT 802.3AT WIDE TEMPERATURE POWER OVER ETHERNET SUPPLY

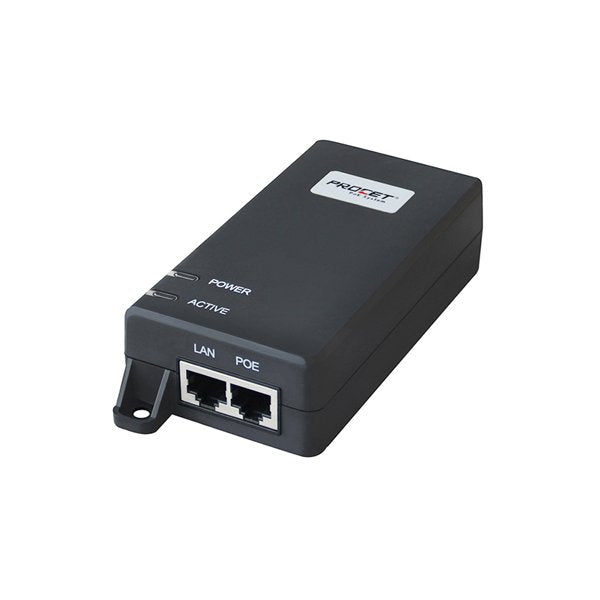

Procet 55V DC 30 Watt 10 Gigabit 802.3at Power over Ethernet Supply. PT-PSE104GO-30-10 is a single port PoE Injector. It provides 55Vdc, 0.55a power for remote PDs over 2 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 30W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals. It is fully compliant with IEEE802.at and backwards compatible to IEEE 802.3af PoE standard.

PT-PSE104GO-30-10 is designed for indoor use. It works with input voltage of 100-240Vac and operates under -40°C to +65°C. It has a detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standards compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

FEATURES

Input: 100-240Vac 1.5A 50/60Hz

Output: 55Vdc 550mA 30W

Power Pin:4/5(+),7/8(-)

Transmission Rate: 10/100/1000Mbps & 2.5/5/10GbE

Compact design, smaller in size: 145.51mm X 65.8mm X 33.5mm

Automatic detection and protection of non-standard devices (Active)

Low power devices receive only the power they need

UL, CE, FCC certificate

SPECIFICATIONS

Manufacturer's Product Code: PT-PSE104GO-30-10

Input: 100-240Vac 1.5A 50/60Hz

Output: 55Vdc 550mA

Power Pins: 4/5(+), 7/8(-)

Data Speed: 10/100/1000Mbps & 2.5/5/10GbE

Operating Temperature: -40°C to 65°C

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -20°C to 85°C

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: Up to 5000meters

Standards: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5/5/10GbE NBASE-T, Full compliant with IEEE802.3af/at, RoHS Compliance, WEEE Compliance

EMI: FCC CFR47 Part 15, EN55024, EN55032

EMS: IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)

Case: Plastic

Colour: Black

Mounting: Wall-mounted

IP Rated: IP40

Size: 145.51mm X 65.8mm X 33.5mm

Weight: 255g

PACKAGE CONTENTS

1 x 55V Dc 30 Watt 10 Gigabit Wide Temperature Power Over Ethernet Supply
1 x NZ 3 Pin Power Lead
