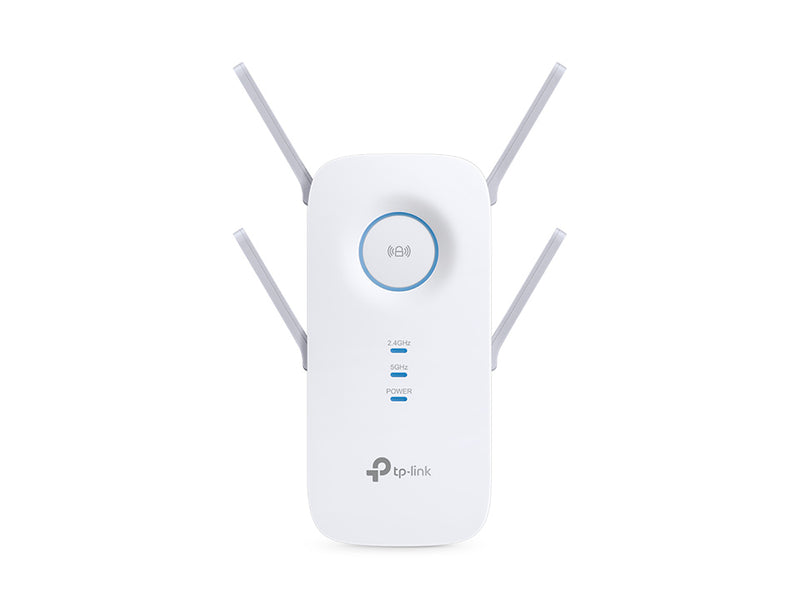

TP-LINK RE650 AC2600 WI-FI RANGE EXTENDER
Blazing-Fast Dual Band Wi-Fi Extension
With four external and dual band antennas, the RE650 establishes a stable wireless connection to any Wi-Fi router and boost the network's coverage by up to 14,000 square feet. The 880MHz dual-core processor provides maximum Wi-Fi performance, keeping your smartphones and tablets connected as you move throughout your home.
Beamforming technology detects the location of devices and concentrates Wi-Fi towards them for stronger connections.
4-Stream AC2600 Dual Band Wi-Fi
Using 4-Stream technology to boost its Wi-Fi capability, the RE650 reaches industry-leading maximum speeds of up to 800Mbps on 2.4GHz, 1733Mbps on 5GHz. This provides the speed and elite performance necessary to support your most demanding online applications, including simultaneous 4K streaming and lag-free gaming.
More Connections and Faster for Everyone
MU-MIMO technology allows the RE650 to serve up to four devices at once, reducing wait time and greatly increasing Wi-Fi throughput for every device. With MU-MIMO, the RE650 runs up to 4x faster than traditional AC range extender.
High-speed Gigabit Wired Connection
The RE650's Gigabit Ethernet port lets you connect a wired device such as a game console or smart TV to create a fast, reliable wired connection.
Find the Best Spot with Intelligent Signal Indicator
The Intelligent Signal Light helps you quickly find the best location to install the RE650.
Built-in Access Point Mode
RE650 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 4×4 MU-MIMO dual band wireless access point.
Drop-Free and Seamless Dual Band Connections
If one of the main router's dual bands drops suddenly, or in case the main router can only deliver single band, the RE650 still provides stable dual-band connections for clients, allowing you to enjoy stable and drop-free experience on all your devices.
Easy Monitoring and Control
TP-Link Tether is an intuitive app that allows users to conveniently monitor the state of your range extender, controlling its functions and altering its settings from any compatible mobile device.
FEATURES
Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage by up to 14,000 sq. ft.
4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz
4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections
Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
SPECIFICATIONS
HARDWARE FEATURES
Plug Type: EU, UK, US
Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface:1 x 10/100/1000M Ethernet Port (RJ45)
Button: WPS Button, Reset Button, LED Button, Power Button
Power Consumption: 12W(max power consumption)
Antenna: 4 x external
Dimensions (W x D x H): 6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm)
WIRELESS FEATURES
Frequency: 2.4GHz & 5GHz(11ac)
Signal Rate: 5GHz:Up to 1733Mbps, 2.4GHz:Up to 800Mpbs
Reception Sensitivity
5GHz:
11a 6Mbps:-96dBm@10% PER
11a 54Mbps: -78dBm@10% PER
11ac HT20 mcs8: -69dBm@10% PER
11ac HT40 mcs9: -66dBm@10% PER
11ac HT80 mcs9: -63dBm@10% PER
2.4GHz
11g 54M: -79dBm@10% PER
11n HT20 mcs7: -77dBm@10% PER
11n HT40 mcs7: -74dBm@10% PER
Wireless Modes: Range Extender/Access Point
Wireless Functions: Wireless Statistic, Concurrent Mode boost both 2.4G/5G WiFi band,
Access Control, LED Control, Domain Login Function
Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK
Transmission Power: <20dBm(2.4GHz), <23dBm(5GHz)
OTHERS
Certification: CE, FCC, RoHS
Box Dimensions (W X D X H): 7.9 x 4.9 x 3.8 in. (202 x 125 x 97mm)
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment:
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
PACKAGE CONTENTS
1 x TP-Link RE650 AC2600 Wi-Fi Range Extender
1 x Quick Installation Guide
