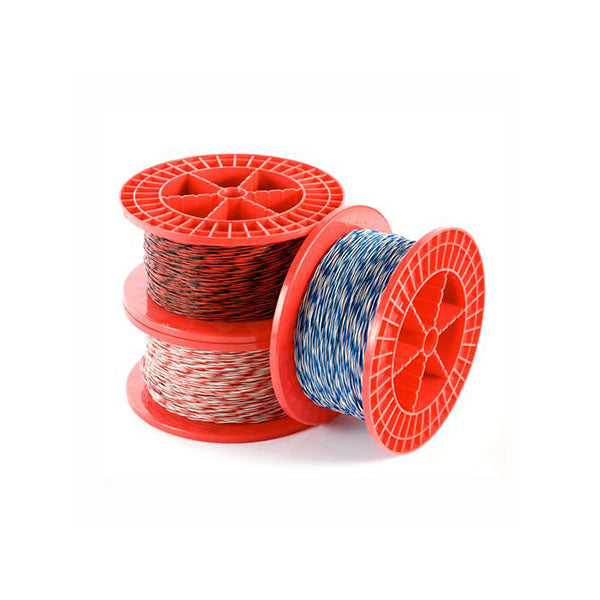

100M Roll Red White Jumper Wire

100M ROLL RED WHITE JUMPER WIRE

0.5 mm bare copper PVC jumper wire is the standard for the telecommunications industry. Used to jumper connections at an analogue or low bit rate MDF or distribution frame. This product is PVC insulated to provide flame retardancy in indoor applications.

FEATURES

100m Roll

Red White

2 Cores

24AWG

SPECIFICATIONS

Pack Size: 100m

Applicable Standards: AS/ACIF S008

Suitable Applications: For the wiring of electronic and allied equipment and for the interconnection of internal telephone frames.

ROHS Compliant: Yes

No. Cores: 2

Conductor Characteristics

AWG: 24

Stranding (mm): 1/0.50

Area (mm2): 0.2

Diameter (mm): 0.5

Material: BC

Insulation

Material: PE

Nominal Thickness (mm): 0.2

Nominal OD (mm): 0.95

Physical Characteristics

Insulation – Elongation at BBA: >400%

Electrical Properties

Voltage Rating: TNV

Max. Conductor DC Resistance @ 20°C: 93.8Ω/km

Min. Insulation Resistance @ 20°C: 1000MΩ.km

Voltage Test: Conductor to core 1.5kV ac/1min

Mechanical Properties

Operating Temp Range: -15 to 90°C

Approximate Mass(kgs/100m): 0.46kg/100m

Supply Information

Supply Information – Pack Type: Plastic Reel

Dimensions: 7 x 4.5 x 2″

PACKAGE CONTENTS

1 x 100M Roll Red White Jumper Wire
