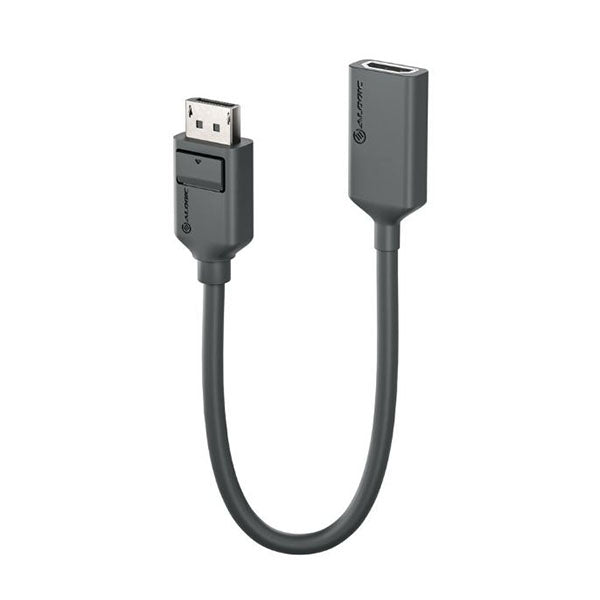

Alogic Elements Displayport To Hdmi Adapter Male To Female 20Cm

ALOGIC ELEMENTS DISPLAYPORT TO HDMI ADAPTER - MALE TO FEMALE- 20CM

Designed for when performance, reliability and value count, Elements series cables and adapters are budget friendly while providing professional performance for home or commercial use.

These adapters connect DisplayPort DP++ sources to HDMI displays and support HDMI resolutions up to the HDMI 1.4 maximum of 4K at 30Hz as well as Full HD 1920x1080 at up to 144Hz.

Engineered with low profile connectors and high flexibility, low bend radius cable, these adapters are ideal for use where space is limited such as behind displays and in equipment racks.

Value Oriented Connectivity

These adapters leverage the fact that most DisplayPort source devices natively support HDMI displays to provide a passive, budget friendly option to connect these devices.

In order to use these cables it is important that the DisplayPort source is DP++ compatible, indicating that it is compatible with HDMI displays.

For non DP++ DisplayPort outputs, or if you are not sure whether the port supports DP++, we recommend using our active DisplayPort to HDMI cables – EL2DPHD4K-02.

Reliability You Can Count On

Engineered with professional applications in mind, these adapters utilise highly flexible 30AWG cable for reliable performance and ease of installation in home or business uses.

Years of feedback about other companies’ DisplayPort cables failing in the field has led us to develop our own unique connector construction to ensure long lasting reliability.

Our robust ABS low profile DisplayPort connectors provide a comfortable grip and easy insertion while standing up to use in high traffic environments. The connectors are latching, meaning they can’t fall out once connected.

With hundreds of thousands of our cables installed in professional environments, this range draws upon our vast experience providing products that last the test of time in the most demanding applications.

FEATURES

Connects DisplayPort source equipment to HDMI displays and other equipment

HDMI 1.4 compatible

Supports resolutions up to 4K at 30Hz and Full HD 1920x1080 at up to 144Hz

Highly flexible cable with low bend radius can be used in tight spaces in equipment racks, AV furniture and behind wall mounted displays

Robust ABS and PVC low profile connectors provide a comfortable grip and easy insertion while standing up to use in high traffic environments

Conforms to HDMI version 1.4 Specification. Data rates up to 10.2Gbps. Supports 3D video and colour depth to 48 bits - 16 bits per colour.

SPECIFICATION

Input / Output

Input: DisplayPort Male, Output: HDMI Type A Female (uni-directional)

Requires DP++ capable source device that supports output of HDMI format signals from the DisplayPort output

Resolution

Supports up to maximum HDMI 1.4 resolution of 4K at 30Hz

Supports refresh rates of up to 144Hz at Full HD 1920x1080

Video Support

Supports 3D video

Refresh rates to 240Hz at 1080p

Colour depths to 16 bit per colour

Data Rate

HDMI 1.4, 10.2Gbps, High Speed class cable

(Backwards compatible with all previous HDMI standards)

Compatibility

Use for connecting DisplayPort source devices to HDMI displays. DisplayPort source must support DP++ compatibility with HDMI.

This cable is uni-directional; it cannot be used to connect a HDMI source to a DisplayPort display.

Physical Characteristics

Materials: ABS DP Connector, PVC Jacket and HDMI Connector

Colour: Dark Grey

Length: 20cm

PRODUCT CONTENT

1 x Alogic Elements Displayport To Hdmi Adapter Male To Female 20Cm
