Aten 2-Port VGA/Audio Splitter (450MHz)

ATEN 2-PORT VGA/AUDIO SPLITTER (450MHZ)

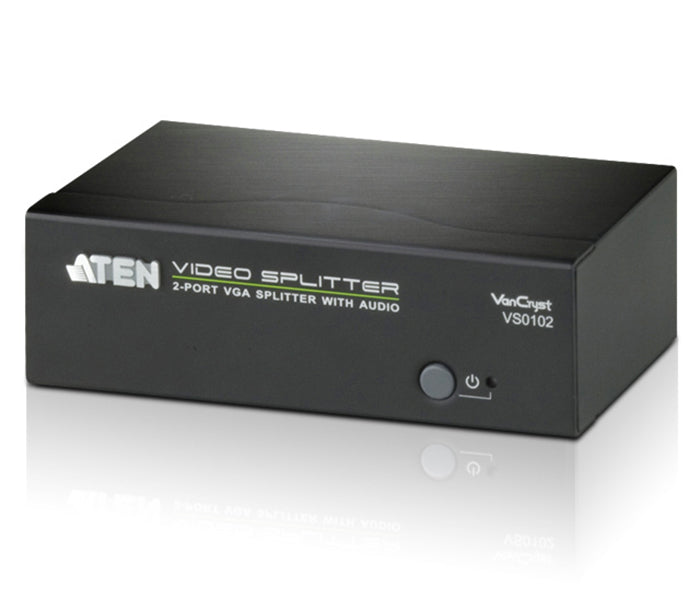

The ATEN VS0102 2-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to two output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.
Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

The VS0102 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 8 video displays while sustaining the highest quality possible.

FEATURES

One video input to 2 video outputs

Superior video quality – up to 1920 x 1440 @ 60Hz

Supports up to 450MHz bandwidth for high performance video

Long distance transmission – up to 65m *

Supports VGA, SVGA, UXGA, WUXGA, and multisync

EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display

Expandable – provides up to 8 video displays

Features RS-232 serial port for command controls **

RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable

Supports stereo audio

Plug-and-play – no software installation required

Note: * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality

SPECIFICATIONS

Video Input

Interfaces: 1 x HDB-15 Male (Blue)

Impedance: 75 Ώ

Max. Distance: 1.8 m

Video Output

Interfaces: 2 x HDB-15 Female (Blue)

Impedance: 75 Ώ

Video

Max. Bandwidth: 450 MHz

Max. Resolution: Up to 1920 x 1440

Max. Distance: Up to 30 m

Audio

Input: 1 x Mini Stereo Jack Female (Green)

Output: 2 x Mini Stereo Jack Female (Green)

Control

RS-232: 1 x DB-9 Female (Black)

EDID Settings EDID Mode: Port 1 / Auto / Default

Power

Connectors: 1 x DC Jack

Consumption: 5.3 VDC, 0.8W

Environmental

Operating Temperature: 0-50°C

Storage Temperature: -20 - 60°C

Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

Housing: Metal

Weight: 0.46 kg ( 1.01 lb )

Dimensions (LxWxH): 13.00 x 7.61 x 4.40 cm

PACKAGE CONTENTS

1 x Aten 2-Port VGA/Audio Splitter (450MHz)
