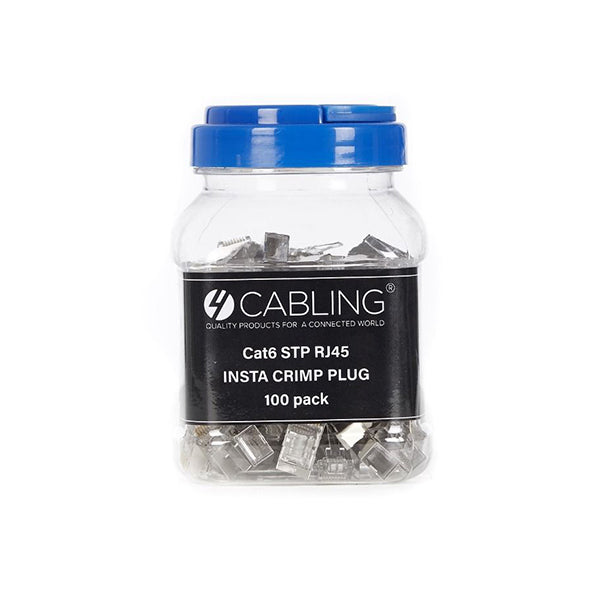

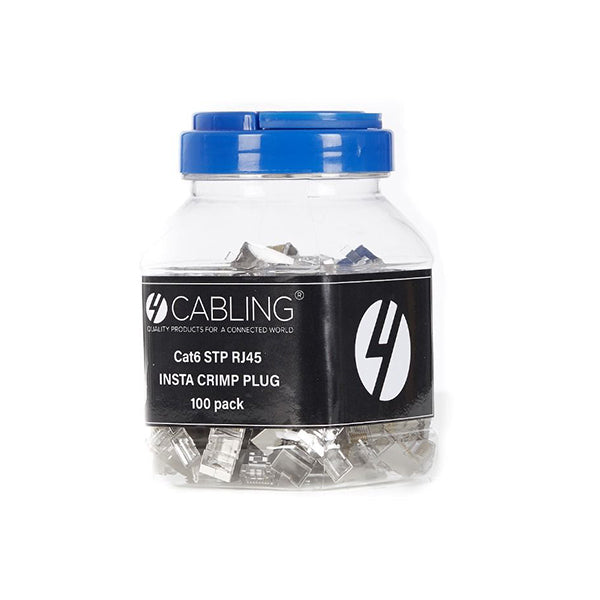

CAT6 STP RJ45 INSTA CRIMP PLUG 100 PACK
Insta crimp plugs. Simplifies twisted pairs termination by allowing the wires to be inserted through the connector and out the front. This feature allows the technician to verify the proper wiring order.
Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!
*Insta Crimp tool required.
50-micron gold plated contacts
Certification: UL, IEC 60603-7, FCC compliant
UL applications: Max. 250V, AT 2 Amps
Dielectric Withstanding Voltage: 1000V AC
Insulation resistance: 100 MΩ
Termination: Max. resistance 20 mΩ
1 x Cat6 Stp Rj45 Insta Crimp Plug 100 Pack
