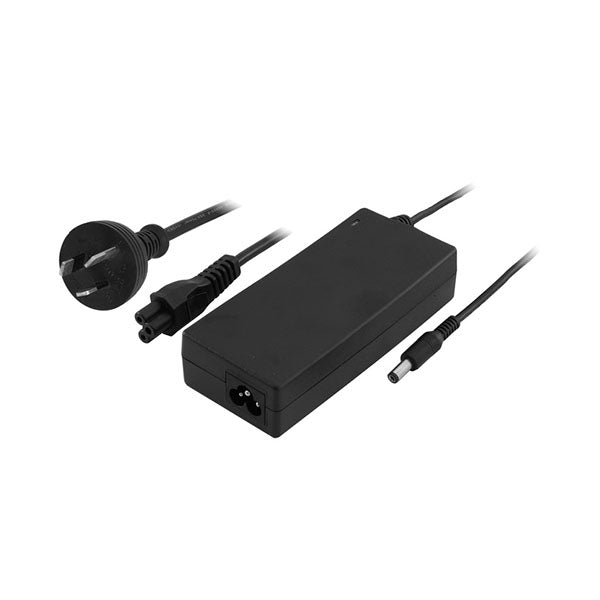

Doss 24VDC Power Supply

DOSS 24VDC POWER SUPPLY


SPECIFICATIONS

Input

Input voltage rating : 100-240V AC

Input voltage range: 90-264V AC

Input frequency rating : 60/50Hz

Input frequency range: 63/47Hz

AC input current: 1.5A Max @ 100V AC

AC input power saving: 0.5W Max @ 230V AC at no load

Inrush Current: 30A Max @ 100VAC cold start, 60A Max @230VAC cold start

Leakage current: 0.25mA Max

Output Characteristics

Output voltage: 24V

Max. load current 3.75A

Min. load current 0A

Output no load voltage: 24V±5%

Output load voltage: 24V±5%

Output ripple & noise: 220mV max.

Measured by using a 12inch twisted pair terminated with a 10uF capacitor and 0.1UF ceramic in parallel

General Characteristics

Total output power: 90Watts

Efficiency measurement : 86%(Min.)@full load & input 230VAC,Output set to 24V/3.75A.

For production testing: 86%(Min.)@full load & in put 115VAC,Output set to 24V/3.75A. Efficiency : 87%(Min.) at 115Vac 60Hz and 230Vac 50Hz input, and 25%, 50%,75%, 100% of full load after 20minutes warm-up. i.e. meet CEC level V and Erp 2 .

Short circuit protection: No damage when output is shorted to GND, and after short circuit, auto restart .

Overshoot / Undershoot: 24V±10%

Environment

Operating temperature: 0~40C

Storage temperature: -025C to 85C

Operating humidity: 8% to 90%

Storage humidity: 5% to 95%

PACKAGE CONTENT

1 x Doss 24VDC Power Supply
