Doss Active Ethernet And Poe Over Coax Receiver Only

DOSS ACTIVE ETHERNET AND POE OVER COAX RECEIVER ONLY

This product is Ethernet and power signal receiver over single coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and power transmission distance reach max up to 1000 metres.

With high speed modern technology, the physical bandwidth is up to 100Mbps (bidirectional). This product is built-in multi-stage surge and lightning protection protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".

This product is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.

FEATURES

Single Channel Ethernet and Power Receiver over Single Coaxial Cable

Ethernet transmission distance reaches max up to 1000 meters

Power transmission distance reaches max up to 1000 meters

Meet standards of EEE802.3 10BASE-T, IEEE802.3u 100BASE-TX

Support IEEE802.3af standard; automatically detect and recognize IEEE802.3af standard PD equipment and provide power to PD equipment

High speed modem technology, the physical bandwidth is up to 100Mbps (bidirectional)

Multi-stage strong surge and lightning protection design

Low power consumption, automatic error-correction coding technology

Easy to install, plug-and-play mode, fast network connection

Include extra 53VDC/1.25A power adaptor

SPECIFICATIONS

Power Supply

Power Adaptor:

Input:100-240VAC

Output: 53VDC/1.25A

No-Load Power: 1.5W(max)

RJ45Interface

Ethernet Interface: RJ45 Interface

Transmission Distance: 100m (max) over cat5e/6

Standards: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE 802.3af

Physical Speed: 100Mbps(bidirectional)

Coaxial Cable Interface

Coaxial Cable Interface: BNC connector

Coaxial Cable Impedance: 75Ohm

Maximum Distance: 1000m(SYV75-5 Cable)

Transmission Distance

300m: 100Mbps

500m: 90Mbps

800m: 70Mbps

1000m: 55Mbps

LED Indicators

Green Light: Coaxial cable connecting indicator

Red Light: Power indicator

Lightning Protection Grade

Network Port:

Differential Mode:2KV Common Mode:4KV

Executive Standard: IEC61000-4-5

Device:

Contact Discharge: 3 grade air discharge: 3 grade

Executive Standard: IEC61000-4-2

Mechanical

Dimensions(L x W x H): 103 x 54 x 26 mm

Housing: Aluminum

Body Color: Black

Weight: 145g

Environmental

Operating Temperature: 0~55°C

Storing Temperature: -25°~85°C

Relative Humidity: 0~95% (non-condensing)

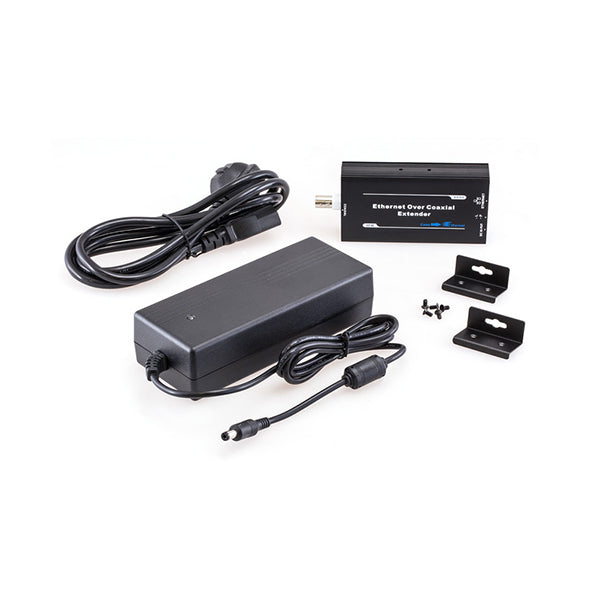

PACKAGE CONTENTS

1 x Doss Active Ethernet And Poe Over Coax Receiver Only
