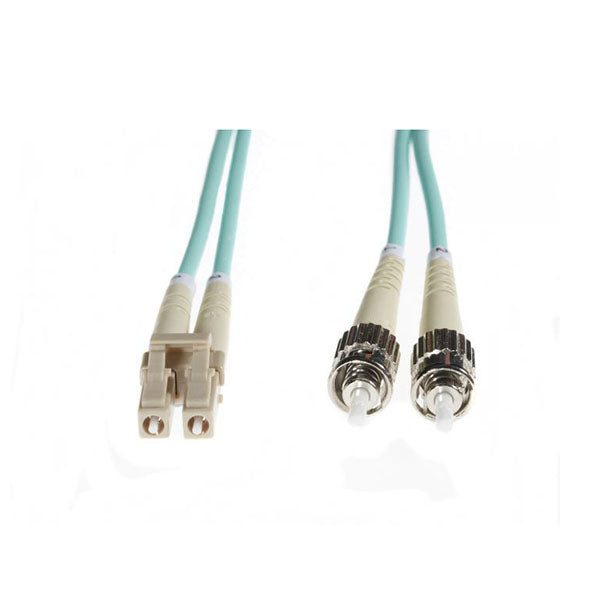

Lc To St Om4 Multimode Fibre Optic Duplex Lszh Patch Lead

LC TO ST OM4 MULTIMODE FIBRE OPTIC DUPLEX LSZH PATCH LEAD

OM4 is backwards compatible with OM3 Fibre optic.

Fibre patch cables are thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.

OM4 laser optimised multimode fibre optic patch leads are immune to EMI/ RFI frequency, The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards, ensuring minimal toxic gas emission in the event of a fire, this is often a requirement for many data centres and critical area applications. LSZH (Low Smoke Zero Halogen) sometimes referred to as LS0H is the material of choice for a green installation for the environmentally-conscious consumer.

Multimode Fibre Optics leads provide a cost-effective solution for your cabling requirements.

FEATURES

OM4 fibre patch leads conform to ISO/IEC 11801 & to ITU-T G.651.1, TIA/EIA 492AAAC and 492AAAD

Individually labelled for lead tracing

Low smoke zero halogen (LSZH) cable

Manufactured with stringent quality control

100% optically tested for insertion loss to guarantee quality

All leads are supplied with a factory test report

Machine UPC (Ultra Physical Contact) connector

All ends are polished and individually inspected for correct polishing

Supports high-speed multi-channel data, voice & video applications

Supports up to 100Gb transfer speeds

Duplex – Aqua jacket zip cord

UL approved fibre optic cables

OM4 thickness 50 / 125μm (Core/Outside Cladding) Multimode (backwards compatible with OM3)

SPECIFICATIONS

Available Lengths: 3m, 5m

LC-ST Fibre Termination

Colour: Aqua

Oversleeving: 2mm

Crush (N): 1000

Simplex/Duplex: Duplex

Strength Member: Aramid

Tensile Load: 7.0kg

Bend Radius: 3.8cm

Operating Temperature (C°): Minus 20° to 60°

Attenuation (dB): 2.8 @ 850nm/0.8 @ 1310nm

Bandwidth OFL (MHz x km): 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm

IL: RL<0.25dB

UPC Singlemode: >55dB

UPC Multimode RL: >35dB

APC: RL>65

PACKAGE CONTENTS

1 x Lc To St Om4 Multimode Fibre Optic Duplex Lszh Patch Lead
