Milesight 4G Lte Cellular Controller With Multiple Io Serial Interface

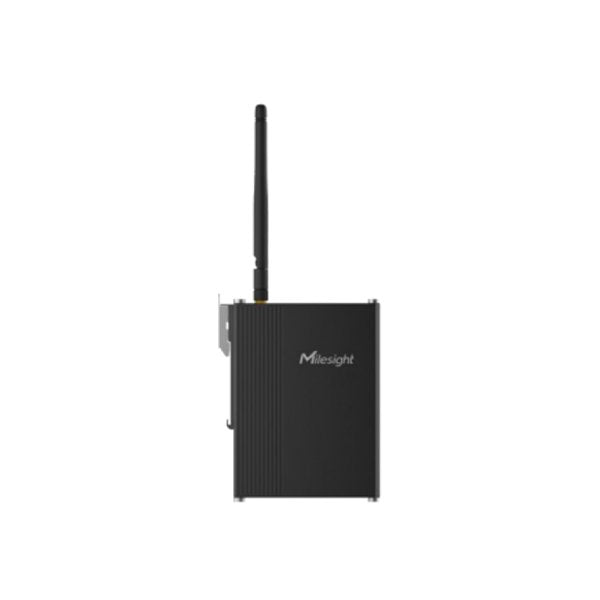

MILESIGHT UC300 4G/LTE CELLULAR IOT CONTROLLER WITH MULTIPLE I/O AND SERIAL INTERFACES

Milesight UC300 4G IoT Cellular Controller with RS232, RS485, Modbus and Multiple I/O Interfaces. The Milesight UC300 series is an IoT controller used for remote control and data acquisition from diverse devices. It contains multiple I/O interfaces including analog input, digital input, relay output, serial port, PT100RTD input, which support remote device data transmission via LoRaWAN® or 3G/4G networks.

The UC300 series also supports multiple trigger conditions and actions which can work autonomously even if the network drops. Combined with Milesight IoT Cloud solution, it can monitor and control remote devices via web server or mobile App easily. Adopting industrial design and IP30 metal case, the UC300 is widely used in indoor applications like smart factory, building automation, etc.

FEATURES

Easy to connect with diverse wired devices through DIO/AI/RS232/RS485/PT100RTD input interfaces

Support 3G/4G wireless communication

Multiple triggering conditions and actions

Embedded watchdog for device working stability

Industrial metal case design with wide operating temperature range

Compliant with standard LoRaWAN® gateways and network servers

Quick and easy management with Milesight IoT Cloud solution

Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool

SPECIFICATIONS

Manufacturer's Code: UC300-L05AU

Technology: 2G/3G/4G/LTE

Cellular Antenna Connector: 1 × 50 O SMA Connector (Center PIN: SMA Female)

SIM Slot: 1 (Micro SIM-3FF)

Application Mode: TCP/UDP/MQTT/AWS/Milesight IoT Cloud/SMS

Interface Type: 3.5mm Terminal Block

IO Ports: 4 × DI + 2 × DO

Digital Input: Opto-isolated Digital Inputs, 3-24VDC (pulse counter support)

Digital Output: SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 VSerial Port

Ports: 1 × RS232 + 1 × RS485

Baud Rate: 1200~115200 bps

Protocol: Transparent (RS232), Modbus RTU (RS485)

Analog Input Ports: 2 × 4~20 mA + 2 × 0~10 V

Resolution: 12 bit

Analog Input (RTD) Ports: 2 × PT100 RTD Input

Input Connections: 2, 3-wire

Resolution: 12 bit

Range: -200°C ~ 800°C

Configuration Port: 1 × Type-C

LED Indicators: 1 × System, 1 × ACT

Built-in: Watchdog, Timer

Power Connector: 3.5 mm Terminal Block

Power Supply: 5-24 VDC

Color & Material: Black, Metal

Ingress Protection: IP30

Operating Temperature: -20°C ~ 60°C (-4 to +140)

Relative Humidity: 0% ~ 95% (non-condensing) at 25°C/77

Dimensions: 93 × 70 × 22 mm

Installation: Desktop, Wall Mounting, DIN Rail Mounting

PACKAGE CONTENTS

1 x Milesight 4G Lte Cellular Controller With Multiple Io Serial Interface
1 x Antenna
1 x 12V-1A PSU
1 x Set terminal blocks
1 x DIN Rail mount clip
1 x Wall mount bracket
1 x Set Wall mounting screws
1 x QSG
