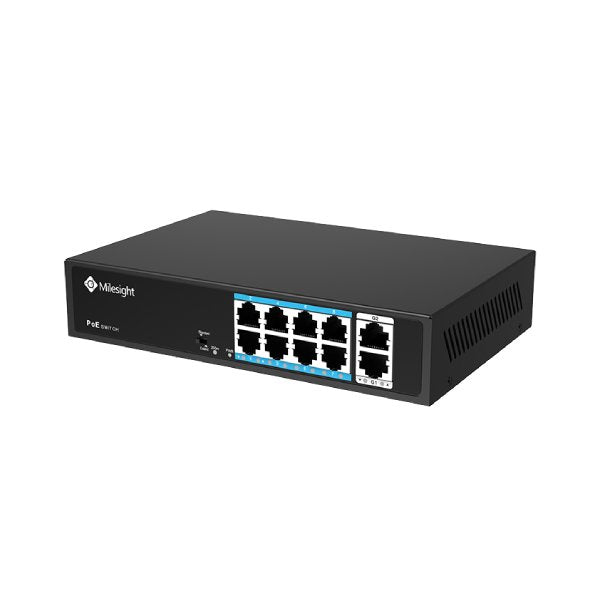

Milesight 8 Port 100Mbps Af At 120 Watt Poe Switch With Gigabit Uplink

MILESIGHT 8 PORT 100MBPS AF AT 120 WATT POE SWITCH WITH GIGABIT UPLINK

Milesight 8 Port 100Mbps AF/AT 120 Watt PoE Switch with Dual Gigabit Uplink ports. Milesight has a range of PoE switches from 4, 8, 16 to 24 port to support their IP Cameras. Milesight PoE Switch Series provides flexible choices for various applications. It automatically recognizes the power receiving devices and offers power. Also, transmitting the data over one single Ethernet cable, it simplifies the network deployment in remote areas without power outlet.

Featuring multiple 10/100Mbps PoE ports which support IEEE 802.3af/at protocol and 2 Gigabit uplink ports, the Milesight PoE Switch Series provides maximum power budget of 400W for all PoE ports and 30W for every single PoE port respectively, allowing users to have several different camera variations configured.

With up to 14.8Gbps switching capacity, non-blocking design and full link-speed forwarding, Milesight PoE Switch Series is able to provide fluent transmission. At the same time, its reliability of data transmission is well guaranteed by the self-adaption ports which support both IEEE 802.3x Full Duplex Communication and Backpressure Half Duplex Communication.

Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

Abide by safety requirements of industrial standard, the Milesight PoE Switch Series is definitely reliable to bring safe perfor-mance. The exquisite metal housing, fanless design, low power consumption and continuous PoE power supply guarantee the efficient and stable running.

The plug and play with no configuration makes the maintaining as easy as ABC. With the indicator lights of PWR and Link/Act, users can easily get the working status of the connected devices. All those will have no doubt to simply the use.

FEATURES

IEEE 802.3af/at Protocol

4KV Surge protection

1Gbps Uplink Ports

100Mbps ports

250m Extend Mode

SPECIFICATIONS

Product Code: MS-S0208-GL

Ports: 8X10/100Mbps PoE ports (RJ45) + 2X1Gbps uplink ports

Standard: IEEE802.3 10Base-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x

Switching Capacity: 11.8Gbps (non-blocking)

Packet Forwarding Rate @64byte: 4.17Mpps

Packet Forwarding Cache: 2M

MAC: 2K

Power Supply: Built-in switching power supply AC 100~240V, 50-60Hz, 2.2A

PoE Standard: IEEE802.3af/at

Max. PoE Power: Max capacity 120W

Max capacity for single port: 30W

Functional Switch: Standard Mode: Port 1~8: 10/100Mbps auto-sensing @100 meters & Port 9~10: 1000Mbps @100 meters

Extend Mode: Port 1~8: 10Mbps @250 meters & Port 9~10: 1000Mbps @100 meters

Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.

Indicator: Power Indicator PWR (green)

Network Indicator: Link (yellow)

PoE Working Indicator: PoE (green)

Functional Switch Indicator: EXTEND (green)

Operating Temperature: -20°~55°C

Storage Temperature: -40°~75°C

Operating/Storage Humidity: 10%~90%RH(non-condensing)

Lightning Protection/ Protection Level: Port lightning protection: 4KV 8/20us

Protection level: IP30

Dimensions: 195mm(W)*130mm(D)*40mm(H)

Weight: 0.7kg

Installation Method: Desktop Type, Wall Mounted Type

PACKAGE CONTENTS

1 x Milesight 8 Port 100Mbps Af At 120 Watt Poe Switch With Gigabit Uplink
