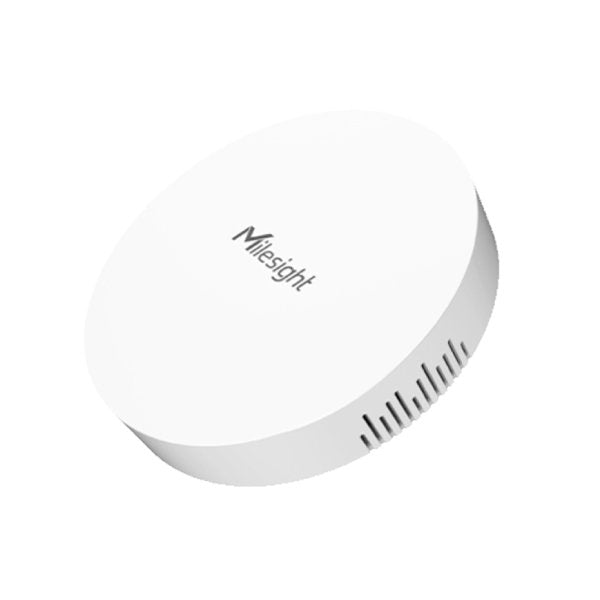

Milesight Ug63 Indoor As923 Lorawan Gateway With Poe Support

MILESIGHT UG63 INDOOR AS923 LORAWAN GATEWAY WITH POE SUPPORT

Milesight UG63 Indoor AU915/AS923 LoRaWAN IoT gateway with PoE support. The Milesight UG63 is a 8-channel lightweight indoor LoRaWAN IoT gateway. Adopting the SX1302 LoRa chip and a high-performance CPU, The UG63 supports connections with more than 2000 nodes and can cover 15 km in sight and about 2 km in an urbanized environment. With its compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers and many other indoor areas. It also can be used to provide coverage for indoor blindspots. UG63 has both integrated mainstream network servers(such as TTN, ChirpStack, etc.), and built-in network server, and is compatible with Milesight IoT Cloud for easy deployment.

FEATURES

High performance NXP industrial processor with big memory

NXP Quad-Core Processor

Semtech SX1302 LoRa Chip

Multiple Backhaul Connectivity options

Embedded Network Server

Compatible with Multiple Network Servers

Supports Listen Before Talk (LBT)

Milesight Cloud compliant

Supports 2000+ end devices

SPECIFICATIONS

Manufacturer's Code: UG65-915M-EA

CPU: 528 MHz, ARM Cortex-A7

Memory: 256 MB DDR4 RAM

Flash: 4 GB eMMC

LoRaWAN Antenna: 2 x Internal Antenna

Channels: 8

Frequency Bands: AU915/AS923

Sensitivity: -140dBm Sensitivity @292bps

Output Power: 27dBm Max

Protocol: V1.0 Class A/Class C and V1.0.2 Class A/Class C

Ethernet: 1 × RJ45 (PoE PD support)

Data Rate: 10/100 Mbps (Auto-Sensing)

Mode: Full or Half Duplex (Auto-Sensing)

Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.

VPN: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN

Power Supply: 5V Type C USB or 802.3 af PoE input

Consumption: = 4.2W

Ingress Protection: IP30

Dimensions: 115 x 21 mm

Mounting: Desktop, Wall or Ceiling Mounting

Reset Button: 1 × RST

Operating Temperature: -20°C to +50°C

Storage Temperature: -40°C to +85°C (-40 to +185)

Relative Humidity: 0% to 95% (non-condensing) at 25°C/77

PACKAGE CONTENTS

1 x Milesight Ug63 Indoor As923 Lorawan Gateway With Poe Support
1 x Wall/ceiling mounting kit
1 x QSG
