Pro2 4 Way 18Gbps Hdmi Switcher

PRO2 4 WAY 18GBPS HDMI SWITCHER

Easily switch between four different HDMI sources with the push of a button or using the included remote. With this product you are getting the latest and greatest in what HDMI has to offer: 4K, 18GBPS bandwidth, HDMI version 2.0, HDR10, and ARC. To top it all off, this product is also an excellent HDMI audio extractor, allowing you to output audio only in either two-channel stereo or 5.1ch surround sound. With ARC, you can grab the audio signal from the TV and output it using the S/PDIF or RCA outputs.

FEATURES

Switch inputs via the front panel or remote control

Extract stereo audio via the front RCA outputs or 5.1ch via the front S/PDIF toslink port

Audio mixing support via 3.5mm auxiliary input and S/PDIF toslink input (bypass mode)

Up to 18GBPS bandwidth

HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)

Simultaneous Audio Output: Stereo and toslink

12 bits per channel (36 bit all channels) deep colour

HDCP 2.2 (backwards compatible)

HDR10 support

Uncompressed LPCM 7.1 audio

DTS-HD Master and Dolby True HD

Audio Return Channel (ARC)

Connections

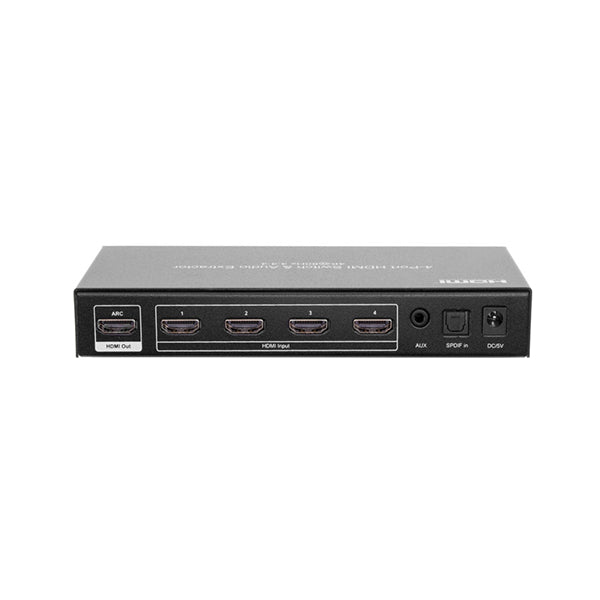

Back Panel:

4x HDMI inputs

1x (ARC) HDMI output

3.5mm AUX input

S/PDIF optical input

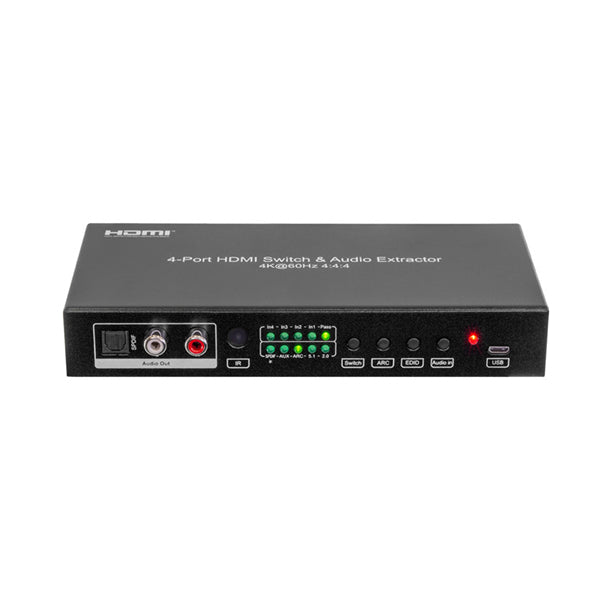

Front Panel:

S/PDIF optical output

2x stereo RCA output

Micro USB input for firmware upgrades

LED Indicators For:

Input, Pass-through, S/PDIF in, AUX, ARC, 5.1 audio,2.0 audio

Push-buttons For:

Source switching (1-4), ARC, EDID (2ch-5.1ch audio), Audio input (Aux, S/PDIF) switching

Power LED indicator

IR window

SPECIFICATIONS

Operating Temperature Range: -5 to +40°C

Operating Humidity Range: 5 to 90% RH (No Condensation)

Power Supply: 5V

Minimum Power (Work under 480p60hz): 256mA

Maximum Power (Work under 4K2K/60hz): 383mA

Max Resolution: 4k@60hz YUV4:4:4

Function: ARC HDR10 and CEC (Only input)

HDMI Version: HDMI 2.0

HDCP Version: HDCP2.2 HDCP1.4 (Auto choose depend TV version)

Control Ways: Switch button and remoter control

Audio: Analogue audio 2.0, SPDIF 5.1, audio extraction

Distance: 1080P 20m, 4k@30hz 10m, 4k@60hz under HDR can support 3m

3D: No

Dimensions (L x W x H): 178 x 84.1 x 28.1 mm

Audio Format: Dolby True HD and DTS-HD master audio (HDMI out)

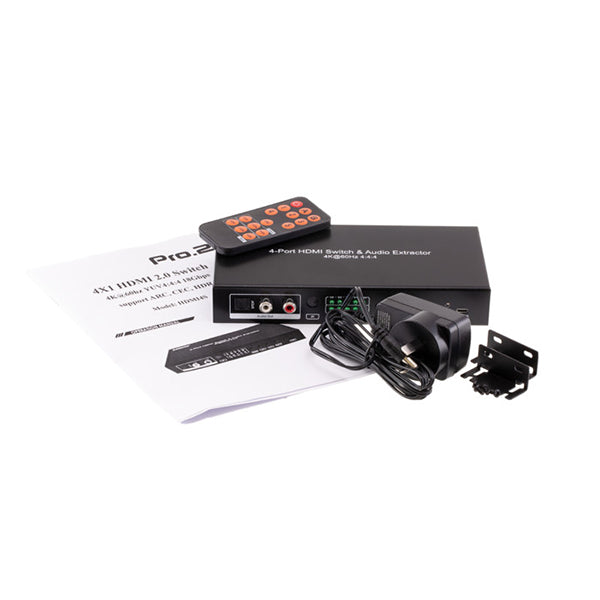

PACKAGE CONTENTS

1 x HDMI4S18G Switcher

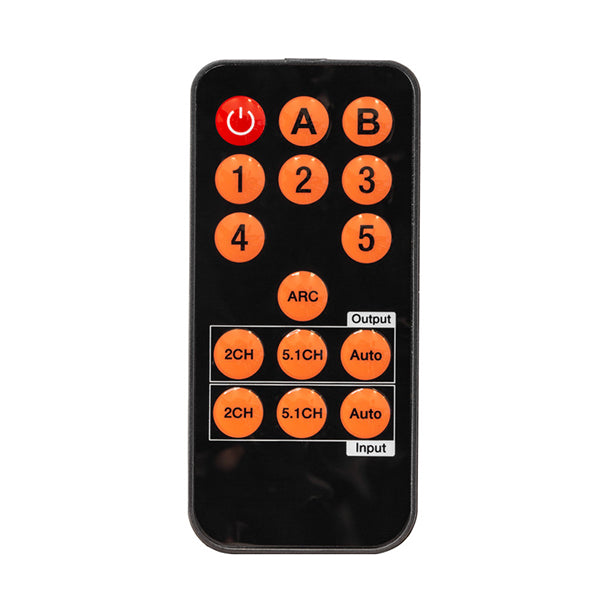

1 x Remote Control

1 x 5V 1A Power Supply

1 x User Manual

1 x Mounting Ears (For Rack Mounting)
