Pro2 4X2 Hdmi 18G Matrix Switcher Arc Spdif Audio Extraction

PRO2 4X2 HDMI 18G MATRIX SWITCHER ARC SPDIF AUDIO EXTRACTION

18g HDMI 4x2 matrix switcher with arc.

FEATURES

Bandwidth up to 18 Gbps

HDMI 2.0 version(Support 4K@60Hz YUV4:4:4)

4 x 2 HDMI Matrix,4×HDMI Inputs,2×HDMI Outputs

SPDIF out/Analog audio 2.0 extraction

HDCP 2.2/HDCP1.4 compliant

LPCM7.1/24-bit/96khz, Dolby Atmos and DTS-X

Support Dolby and HDR10

Support 3D,deep color max 12bit

Support CEC and ARC on both outputs

EDID management to have mixed EDID or copy EDID

Use as a downscaler to downscale from 4K60Hz to 1080p

Micro USB port for future firmware upgrade

Control the unit with the front panel button, IR remote control, web control, or third-party platform

The command list is available to integrate with the third-party platform

SPECIFICATIONS

Bandwidth: 18 Gbps

Resolution: 480p@60hz,576P@50hz,720P@60hz,

1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,

4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4

Operating Temperature Range: 0 to +40°C (32 to +104°F)

Operating Humidity Range: 5 to 90 % RH (no condensation)

Input Video Signal: 0.5-1.0 volts p-p

Input DDC Signal: 5 volts p-p (TTL)

Analog audio Ext port: 1x3.5mm audio jack

Output Video: HDMI 2.0+HDCP1.4/2.2

Output Audio: Support HD digital audio format,SPDIF out/Analog audio 2.0 out, LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X

Dimensions: 210 x 104.3 x 20.8mm (L x W x H)

Net Weight: 0.66kg

Power Consumption: 2.5W(Max)

Power Supply: 5V 1A

PACKAGE CONTENTS

1 x Pro2 4X2 Hdmi 18G Matrix Switcher Arc Spdif Audio Extraction

1 x 5V 1A DC Power Supply

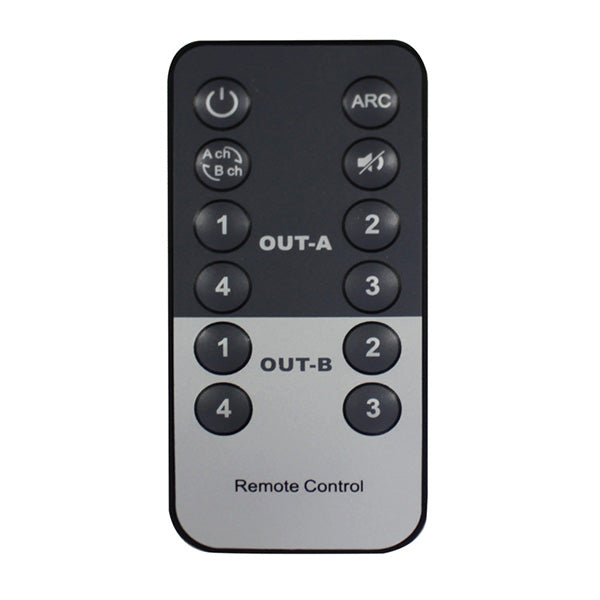

1 x IR Remote Control

1 x CD Disc

Payment & Security

American Express Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping & Returns

FREE Shipping in Australia - Dispatch 1-2 days



Shipping Information:
- Free Shipping Australia-Wide: Excluding Bulky Items (Outside Metro Area)
- New Zealand Shipping: A flat fee will be applied at checkout for shipping to New Zealand.
- Fast Deliveries: We ensure prompt delivery right to your door.
- Order Processing: Orders are typically processed within 1-2 business days. You will receive a confirmation email with tracking information once your order has shipped.
- Shipping Times: Delivery times vary depending on your location. Most orders within Australia arrive in 3-8 business days.

Returns Information:

- Easy Returns: We want you to be completely satisfied with your purchase. If you are not happy with your item, you can return it within 30 days of receipt.

- Return Conditions: Items must be returned in their original condition, unopened box, unworn and with all tags attached.
- Refund Process: Once we receive your return, we will process your refund less shipping/restocking fees within 3-5 business days to the original method of payment.
- Return Shipping: Customers are responsible for return shipping costs unless the item is faulty or incorrect.
- How to Return: To initiate a return, please contact our customer service team with your order number and reason for return. They will provide you with further instructions.

$389.95
In stock (18 units), ready to be shipped
