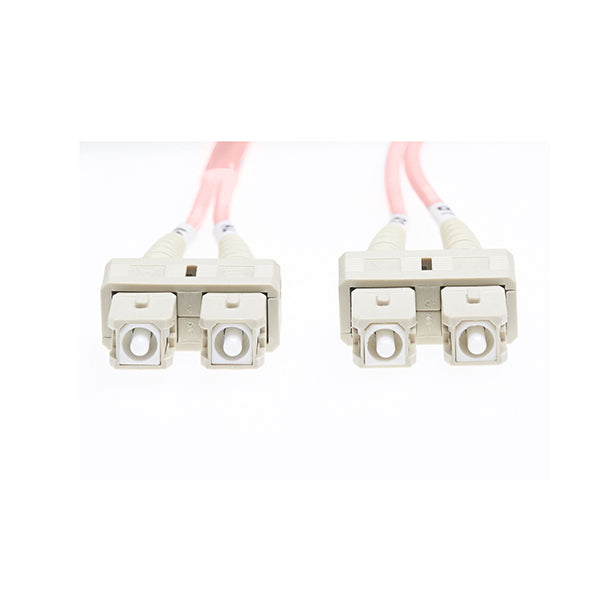

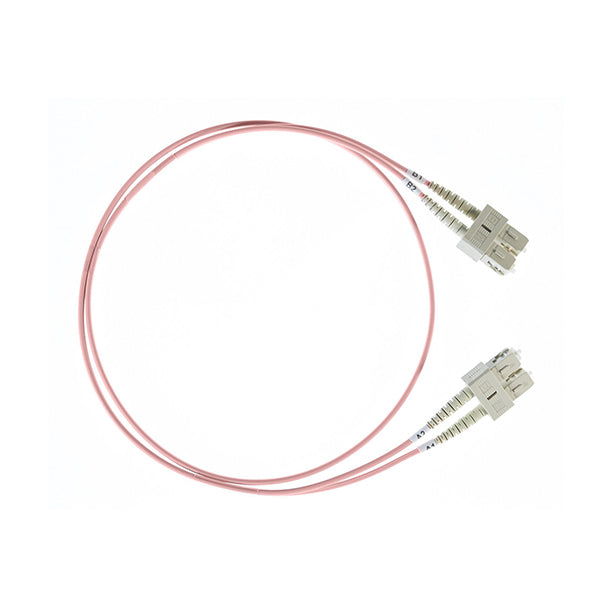

Sc To Sc Om4 Multimode Fibre Optic Cable Salmon Pink

SC TO SC OM4 MULTIMODE FIBRE OPTIC CABLE SALMON PINK

Fibre patch cables are the thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.

OM4 laser optimised multimode fibre optic patch leads provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. This fibre optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards.

Multimode Fibre Optics leads is the cost-effective way of your cabling solution.

Application:

Cross-connect patching

Backbone application in building

Termination enclosure for equipment patching

Equipment to equipment patching

FEATURES

OM4 is backwards compatible with OM3

Conforms to ISO/ IEC 11801

Individually labelled for lead tracing

Low smoke zero halogen (LSZH) cable

Manufactured with stringent quality control

UPC (Ultra Physical Contact) connector

All leads are supplied with a factory test report

Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAD

Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads

All ends are polished and individually inspected for correct polishing

Supports high-speed multi-channel data, voice & video applications

SPECIFICATIONS

Available Lengths: 1.5m, 10m

SC-SC Fibre Termination

Colour: Salmon Pink

Oversleeving: 2mm

Crush (N): 1000

Simplex/Duplex: Duplex

Strength Member: Aramid

Tensile Load: 7.0kg

Bend Radius: 3.8cm

Operating Temperature (C°): Minus 20° to 60°

Attenuation (dB): 2.8 @ 850nm/0.8 @ 1310nm

Bandwidth OFL (MHz x km): 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm

IL: RL<0.25dB

UPC Singlemode: >55dB

UPC Multimode RL: >35dB

APC: RL>65

PACKAGE CONTENTS

1 x Sc To Sc Om4 Multimode Fibre Optic Cable Salmon Pink
