Serveredge Hdbaset 4K2K Hdmi Extender Kit Bi Directional Ir 70M

SERVEREDGE HDBASET 4K2K HDMI EXTENDER KIT BI-DIRECTIONAL IR - 70M

The Serveredge HD-EXR-7 -HDBT is a 4K2K HDMI over HDBaseT extender kit (Tx/Rx) for HDMI transmission up to 7 meters (UHD resolution up to 35m) over a single CAT5e/CAT6/CAT6A cable with Bi-directional IR control capability. The kit is HDCP compliant and supports HDMI up to 1 .2Gps, including support for 1 8 p 6 , Deep Colour, HD-3D, 4Kx2K video, HD Audio Formats and Audio Return Channel. It only needs power supply at either Transmitter or Receiver end. It's an advanced and inexpensive all-in-one connectivity solution to minimise cost with use of only a single CAT cable between Transmitter and Receiver. its perfect for applications like hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking, and point-to-point consumer applications.

FEATURES

4K/UHD capability

Supports Ultra High Definition sources and displays.

Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices

HDCP Compliant

Adheres to latest specification for High-bandwidth Content Protection. Allows protected content stream to pass between devices Only Single Power Supply Required

Only requires single power supply at either transmitter or receiver end. Saves time and integration costs

Extended distance HDMI extension

Transmits HDMI signals up to 7 m @ 1 8 P over CAT5e/6/6A or 4K/UHD up to 35m. Uses easy-to-integrate category cable for low-cost, reliable system installation

Bi-directional IR Delivers 4K/UHD video, audio and Bi-directional 1IR over a single cable. Eliminates multiple cable runs between source and display

SPECIFICATIONS

Input → Output

Transmitter Unit: HDMI x 1 - RJ-45 x 1

Receiver Unit: RJ-45 x 1 - HDMI x 1

Video Resolution (max.):

70M (Full HD 1920 x 1080)

35M (UHD 3840 x 2160)

Power Supply: DC 12V (Single power supply at either one end of two units (Tx & Rx))

Enclosure: Metal

Weight: 170~180, 250~265

H x W x D (mm): 20 x 80 x 50, 23 x 80 x 67

PRODUCT CONTENT

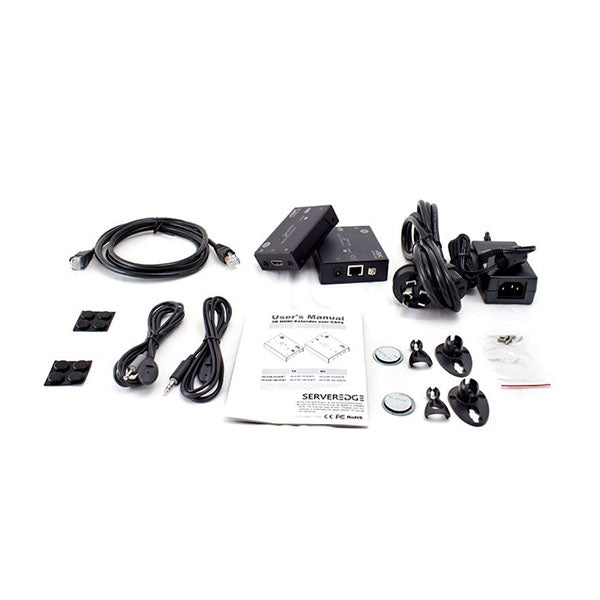

1 x Serveredge Hdbaset 4K2K Hdmi Extender Kit Bi Directional Ir 70M
