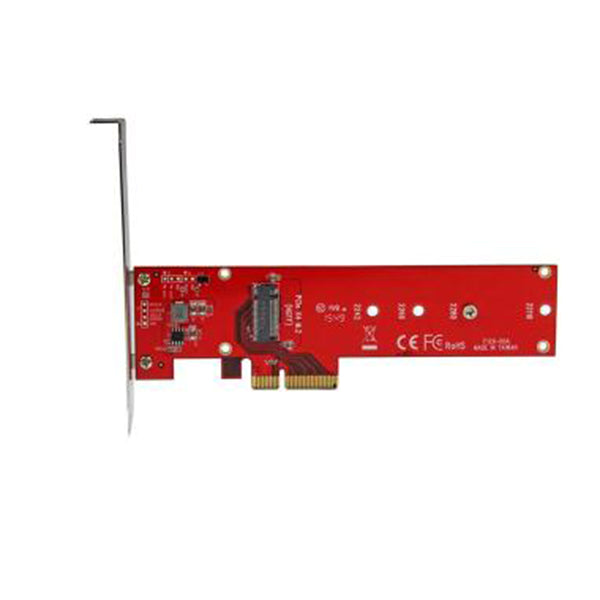

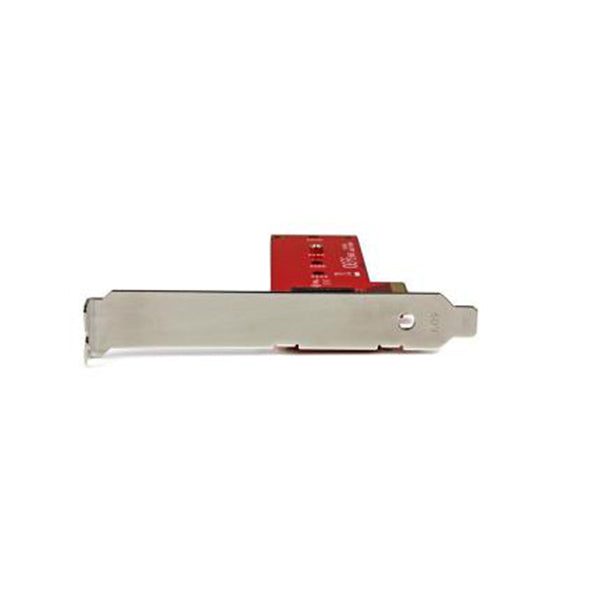

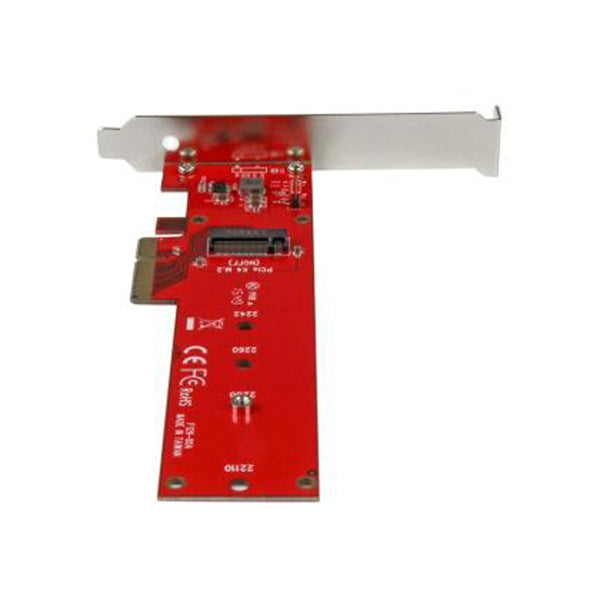

Startech X4 Pci Express To Pcie Ssd Adapter

STARTECH X4 PCI EXPRESS TO M.2 PCIE SSD ADAPTER

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe.

SPECIFICATIONS

Basic

Brand Name: StarTech

Product Type: M.2 to PCI Express Adapter

General Information

Brand Name: StarTech

Manufacturer Part Number: PEX4M2E1

Manufacturer: StarTech

Product Name: x4 PCI Express to M.2 PCIe SSD Adapter-M.2 NGFF SSD (NVMe or AHCI) Adapter Card

Product Type: M.2 to PCI Express Adapter

Miscellaneous

Additional Information: Hardware ; Bus Type PCI Express ; Compatible Drive Types (Type and Rate) M.2 (NGFF; M-Key; PCIe x4) ; Drive Installation Fixed ; Drive Size 22m - M.2 NGFF ; Interface PCI Express

Number of Drives: 1

Supported Drive Height(s): 2242 ; 2260 ; 2280 ; 22110

Performance

Hot Swap Capability: No Connector(s)

Drive Connectors: 1 - M.2 (NGFF; M-Key; PCIe x4)

Host Connectors: 1 - PCI Express x4 Male

Software

OS Compatibility: OS independent; No software or drivers required

Indicators

LED Indicators: 1 - Pin header on board for drive LED connection

Environmental

Humidity: 15% ~ 90% RH

Operating Temperature: 5°C to 50°C (41°F to 122°F)

Storage Temperature: -25°C to 70°C (-13°F to 158°F)

Physical Characteristics

Color: Red

Certifications & Standards: FCC ; CE

Environmental Certification: RoHS ; WEEE

Environmentally Friendly: Yes

Physical Characteristics

Colour: Red

Height: 22.9 mm

Length: 177.8 mm

Weight (Approximate): 42.5 g

Width: 78.7 mm

PACKAGE CONTENTS

4 x PCI Express to M.2 PCIe SSD Adapter

1 x Low-profile Bracket

1 x Full-profile Bracket (pre-installed)

1 x SSD Standoff and installation Screw

1 x Quick Start Guide
