Teltonika Advanced Lte Terminal With Flexible Inputs Configuration

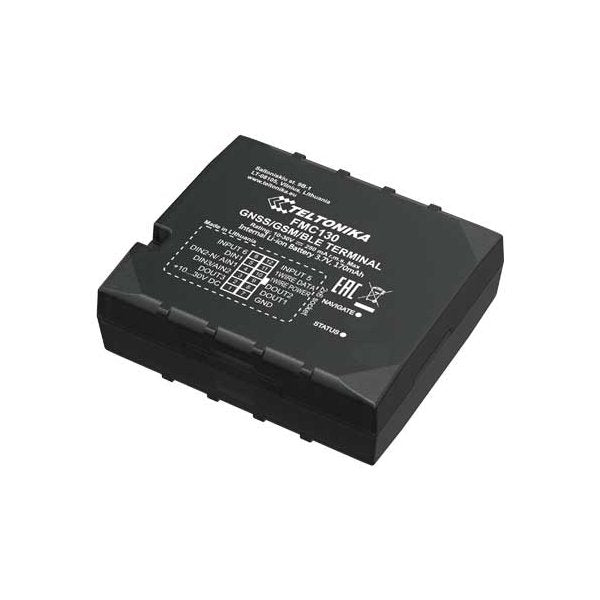

TELTONIKA FMC130 ADVANCED LTE TERMINAL WITH FLEXIBLE INPUTS CONFIGURATION

The Teltonika FMC130 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery.

FMC130 developed on the existing Teltonika FMB platform, therefore it keeps all of the functionalities from FMB130 and builds on top of them with its industry-leading connectivity coverage.

For starters, FMC130 features negative input which allows you to save precious integration time while connecting accessories like vehicle doors sensor, alarm buttons, seatbelt detection, and other similar sensors or accessories.

Additionally, the device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC130 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.

Programmable inputs, 3 different configurable DOUT scenarios (immobilizer, buzzer, alarm lights, door lock and other scenarios) together with 4G (LTE Cat 1) compatibility including the 3G (UMTS) and 2G (GSM) fallback compatibility make this one of our most flexible devices ever.

FEATURES

Reliable 4G (LTE Cat 1) connection with fallback to 3G (UMTS), 2G (GSM) networks

Allows device to work without external power source

Configurable DIN/AIN for flexible remote monitoring and control

Negative input will allow easier installation of accessories

CAN data reading from vehicles and specialized transport

Impulse inputs for fuel flow meters data reading

SPECIFICATIONS

Product code: FMC130 (FMC130C3U801)

Module Name: Quectel EC21-AU, Quectel EC21-EC, Teltonika TM2500

Technology: LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH

GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS

Receiver: Tracking: 33

Tracking sensitivity: -165 dBM

Accuracy: < 3 m

Hot start: < 1 s

Warm start: < 25 s

Cold start: < 35 s

Cellular Technology: LTE Cat 1, UMTS, GSM

2G bands: EC21-AU:GSM: B2/B3/B5/B8, EC21-EC:GSM: B3/B8

3G bands: EC21-AU:WCDMA: B1/B2/B5/B8, EC21-EC:WCDMA: B1/B8

4G bands: EC21-AU:LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD: B40, EC21-EC:LTE

FDD: B1/B3/B7/B8/B20/B28A

Data transfer: LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL), LTE TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL)

Data transfer: UMTS:WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL), GSM:GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)

Data support: SMS (text/data)

Input voltage range: 10 - 30 V DC with overvoltage protection

Internal Back-up battery: 170 mAh Li-Ion, 3.7 V battery (0.63 Wh)

Bluetooth Specification: 4.0 + LE

Supported peripherals: Temperature and Humidity sensor, OBDII dongle, Inateck

Barcode Scanner, Universal BLE sensors support

Dimensions: 65 x 56,6 x 20,6 mm (L x W x H)

Weight: 55 g

Operating temperature (without battery): -40 °C to +85 °C

Storage temperature (without battery): -40 °C to +85 °C

Operating humidity: 5% to 95% non-condensing

Ingress Protection Rating: IP41

Battery charge temperature: 0 °C to +45 °C

Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature: -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months

Digital Inputs: 3

Negative Inputs: 1 (Digital Input 2)

Impulse Inputs: 2 (Digital Input 1, Digital Input 2)

Digital Outputs: 3

Analog Inputs: 2

CAN Adapter inputs: 1

1-Wire: 1

GNSS antenna: Internal High Gain

Cellular antenna: Internal High Gain

USB: 2.0 Micro-USB

LED indication: 2 status LED lights

SIM: Micro-SIM + eSIM

Memory: 128MB internal flash memory

Sensors: Accelerometer

Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence,

Manual Geofence, Trip

Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)

SMS: Configuration, Events, DOUT control, Debug

GPRS commands: Configuration, DOUT control, Debug

Time Synchronization: GNSS, NITZ, NTP

Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle

Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

PACKAGE CONTENTS

1 x Teltonika Advanced Lte Terminal With Flexible Inputs Configuration
1 x Input/output power supply cable (0.9 m)
