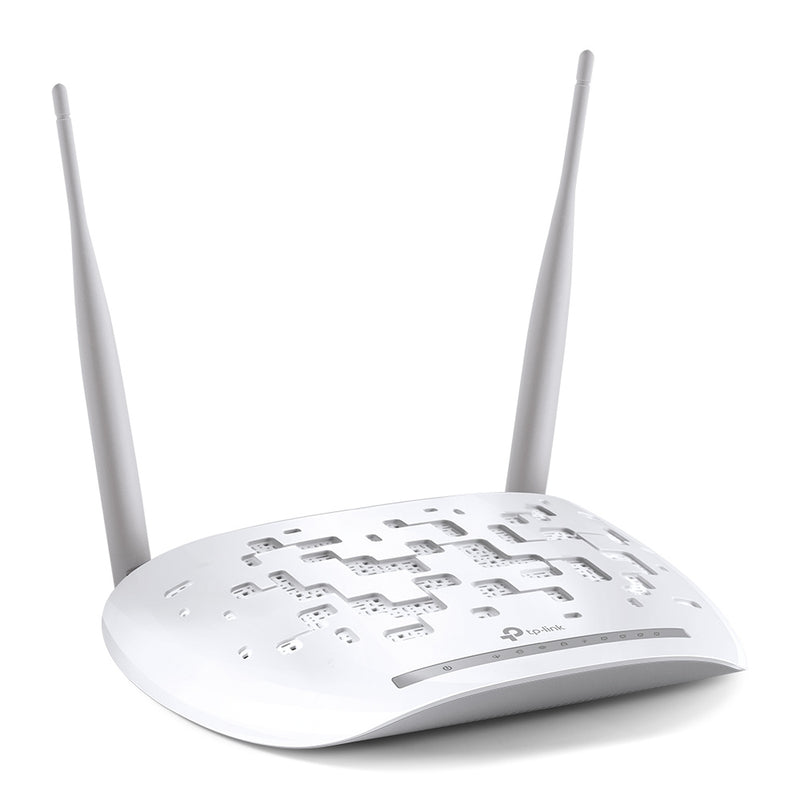

TP-LINKTD-W9970 N300 WIRELESS VDSL ADSL MODEM ROUTERTP-LinkTD-W9970 N300 Wireless Gigabit VDSL ADSL Modem Router 300Mpbs @ 2.4GHz 4x100Mbps LAN 1xRJ11 2xAntenna
Featuring dual WAN ports, compatible with VDSL/ADSL/Fiber/Cable services
Providing broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL
Share files, media and printers with your friends or family using the multi-functional USB port
Interface 4 10/100Mbps RJ45 Ports
1 RJ11 Port
1 USB 2.0 Port
Button 1 Power On/Off Button
1 WPS/RESET Button
1 Wi-Fi On/Off Switch
External Power Supply 12VDC/1A
IEEE Standards IEEE 802.3, 802.3u
VDSL2 Standards ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP）
ADSL Standards Full-rate ANSI T1.413 Issue 2
ITU-T G.994.1 (G.hs)
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 7.7*5.1*1.4 in. (195×130×36mm)
Antenna Type Omni directional, Fixed
Antenna Gain 2 x 5dBi
Compatibility NBN - Fibre to the Node (FTTN) - DSL Modem Router Mode.
NBN - Fibre to the Building (FTTB) - DSL Modem Router Mode.
NBN - Fibre to the Premises (FTTP) - Wireless Router Mode.
NBN - Fibre to the Home (FTTH) - Wireless Router Mode.
For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html
Wireless Standards IEEE 802.11b, 802.11g, 802.11n
Transmit Power <20dBm(EIRP)
Wireless Security Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering
