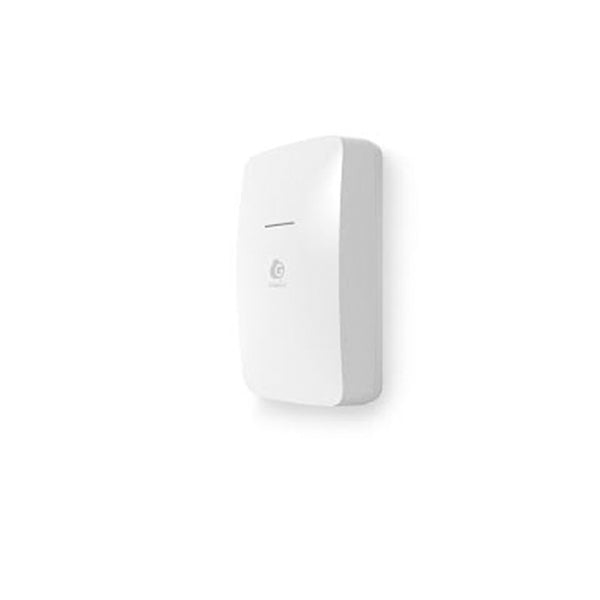

Engenius Ecw115 Cloud Managed Wall Plate Mounted Wifi Access Point
Description
ENGENIUS ECW115 CLOUD-MANAGED 802.11AC WALL PLATE MOUNTED WI-FI ACCESS POINT
EnGenius Networks ECW115 802.11ac Wave 2 Cloud Managed Wall-Plate Indoor WiFi Access Point delivers blazing-fast 1.3 Gbps speeds, Long range and high user capacity. It supercharges performance up to 30% faster than traditional 2x2 APs. This dual-band access point improves connection reliability for exceptional next-generation, business-class high density Wi-Fi connectivity.
FEATURES
Multiple operational modes AP, AP Mesh and Mesh
business-class Wi-Fi performance
AI-driven visualized analytics
Flexible secure authentication options for guest Wi-Fi access
Access Points Locations and Wi-Fi Strength with Floor Plan
Configure with the free EnGenius Cloud controller
SPECIFICATIONS
Operating Frequency: Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes: AP, AP Mesh, Mesh
Frequency Radio: 2.4 GHz: 2400 MHz~2482 MHz, 5 GHz: 5150 MHz~5250 MHz, 5250 MHz~5350 MHz, 5470 MHz~5725 MHz, 5725 MHz~5850 MHz
Transmit Power: Up to 17 dBm on 2.4 GHz, Up to 17 dBm on 5 GHz
Standards: IEEE 802.11b/g/n on 2.4 GHz, IEEE 802.11a/n/ac on 5 GHz
Antenna: 2 x 2.4 GHz: 3 dBi, 2 x 5 GHz: 3 dBi Integrated Omni-Directional Antenna
Physical Interface: 2 x 10/100/1000 Ethernet Ports (PoE), 1 x 10/100/1000 Ethernet Port (PSE Out ; requires 802.3at power source), 1 x DC Jack, 1 x Reset Button
LED Indicators: 1 x Multi-colour LED
Power Source: Power-over-Ethernet: 802.3af/at Input, IEEE 802.11e Compliant Source, 12VDC /1A Power Adapter
Maximum Power Consumption: 11.9W
Radio Chains/Spatial Stream: 2×2:2
SU-MIMO: Two(2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4 GHz radio. Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio.
MU-MIMO: Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5 GHz simultaneously
Supported Data Rates (Mbps): 2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2), 5 GHz: Max 867 (MCS0 to MSC11, NSS = 1 to 2)
Multiple BSSID: 8 SSIDs on both 2.4 GHz and 5 GHz bands
VLAN Tagging: Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN
Spanning Tree: Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service): Complaint With IEEE 802.11e Standard, WMM
SNMP: v1, v2c, v3
MIB: I/II, Private MIB
Fast Roaming: 802.11r/k
Wireless Security: WPA2-PSK, WPA2-Enterprise, Hide SSID in Beacons, MAC Address Filtering, Up to 32 MACs per SSID, Wireless STA (Client) Connected List, Https, SSH Tunnel, Client Isolation
PACKAGE CONTENTS
1 x Engenius Ecw115 Cloud Managed Wall Plate Mounted Wifi Access Point
1 x Wall mount junction plates and screw kits
